Adjustable wrought iron style handrail with newel post

If you have any questions or wish to change the design then please get in touch for free advice and quote

Call :- 0114 244 2233 or Email :- sheffarc@hotmail.co.uk

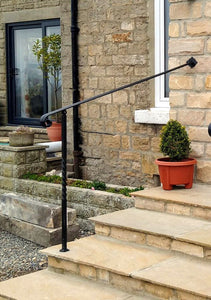

Single Adjustable Angle Steel Handrail

If you are looking for a simple way to get a handrail without having to work out angles then this is it, just pick the length of handrail you need and then it can be set at any angle up to approx 45 degrees.
Help with how to get the length you need to order is lower down.

Our designers have work on getting a beautiful designed fully adjustable wall plate with concealed hinge .

This is a heavy solid steel handrail with flared ornamental scrolled end with ornamental wall fixing plate, the handrail has a curved top and fluted design to it for added style and comfort. Each handrail will be manufactured to the length chosen and height will be pre-set at 900mm for footplate version / 1200mm for cemented version.

The handrail has a Solid steel adjustable newel post with options below
Floor Fixing (post will be 900mm with floor fixing plate welded in place)
Cementing in (post will be 1200mm long to allow 300mm to be cemented in and come with a decorative cover piece)

Fixings - If you are fixing to brick or cement please click here see our anti-theft bolts for solid fixings. (you will need to buy 4 pack, dome head, M10)


Painting
All handrails will be supplied painted in black satin zinc primer


Sizes
Width of handrail will be 50mm
Height from floor 900mm
Total length of handrail, Twist detail, Fixing style all to be chosen from options at the top of listing

Footplate for bolt down version 125mm wide x 105mm front to back (hole centres 85mm apart)


FOR EASY WAY TO GET YOUR SIZES
HOLD A  LENGTH OF WOOD INTO THE POSITION AND ANGLE YOU WOULD LIKE THE HANDRAIL TO BE, THEN MEASURE HOW LONG YOU WILL NEED THE HANDRAIL TO BE TO WHERE THE POST WILL BE FIXED INTO THE FLOOR (X SIZE ON SKETCH).
THIS WILL GIVE YOU THE LENGTH OF HANDRAIL FROM WALL TO POST CENTRE NEEDED.

Please note that the scroll after the post will add approx 175mm - 200mm to the total length chosen

THE HANDRAIL WILL BE 900MM HIGH WHERE THE POST IS THEN CAN BE ADJUSTED TO RISE UP TOWARDS THE WALL TO MATCH YOUR STEPS OR SLOPE AND BOLT IN TO THE WALL.

HANDMADE IN SHEFFIELD for over 30 years
