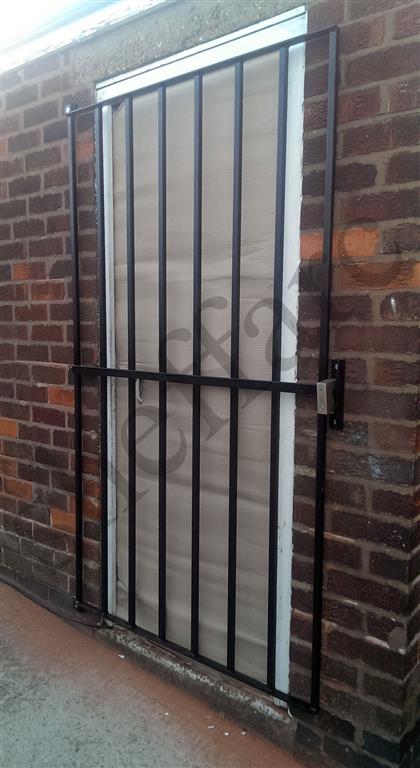

Steel door security grille / gate for home, office or garage
Regular price
£150.00
Sale
Door Security Grille / Gate
Suitable for providing very high security to your Home/Work
This is a high security gate that is designed and manufactured by us that is provided with padlock tabs for use with padlock.
THE BOLTS CANNOT BE REMOVED ONCE FITTED WHEN USING OUR ANTI-THEFT BOLTS FREE WITH THIS LISTING (WORTH £16). BE CAREFUL OF OTHER SITES WHO JUST PROVIDE SCREW FIXINGS OR FIXINGS THAT CAN BE EASILY UNBOLTED AND THAT OFFER NO SECURITY
Plus Points with our Grille to make life simple
NO HANDING ISSUES - (WORKS FOR LEFT OR RIGHT HAND FITTING)
INTEGRAL HINGE - (VERY STRONG)
GRILLE CAN OPEN FULL 180+ DEGREES
SLIMLINE - (ONLY 50mm FROM THE WALL)
PARTIAL SHIELDING OF PADLOCK TO PREVENT BOLT CROPPERS - (IF USING A SQUARE STYLE PADLOCK AS IN PICTURES - NOT SUPPLIED)
These security grilles are manufactured to a high standard to greatly increase the protection of your home / business
They are made from 20mm box section section bars and 30mm x 8mm solid bar as a minimum for the frame.
The grille will be fitted with solid steel INTEGRAL hinges with padlock facility. (single padlock facility as standard).
Padlock facility provided by welded steel tabs (2 x 10mm tabs)
Special design locking area helps to conceal a square shutter style padlock from bolt croppers to aid in better security (opening in padlock min. 20mm to fit over tabs).
16mm masonry drill bit needed to fit anti-theft bolts (not supplied - available at any diy store)
HOW TO MEASURE YOUR REQUIRED SIZE
Simple steps to measure for your grille - SEE SKETCH IN PICTURES
A - OPENING WIDTH BETWEEN THE BRICKWORK
STEP 1 MEASURE A - (WIDTH) IN MILLIMETRES
STEP 2 WHEN YOU HAVE YOUR WIDTH ADD 150MM+ (75MM per side) TO THE WIDTH TO PROVIDE SECURE FIXING IN TO SOLID BRICK.
THE HEIGHT STATED WILL BE THE HEIGHT OF THE GATE AND THE TOTAL SIZE WILL BE +85MM OVER THE FIXING TABS (EG. A 1900MM GRILLE WILL HAVE A TOTAL HEIGHT OF 1985MM (see size charts below)
Sizes chart to easily show total width and height of grilles
Overall width needed to fit the grille when including bracket and fixing tabs on the grille
Width of gate section
Width between the fixing hole centres (how far apart you will drill your fixing holes in the wall)
1060mm
975mm
1015mm
1160mm
1075mm
1115mm
1260mm
1175mm
1215mm
Height of grille chosen
Height of gate section
Total height needed to fit the grille when including the fixing tabs
1900mm
1900mm
1985mm
2000mm
2000mm
2085mm
