Set-Size wrought Iron handrail + 2 posts with footplates
This version is for the bolt down version if you would like one to cement into the ground please Click here.
With this bolt down version you may need to put packing under one end if you angle is not perfect to one of the set-sized options. If you need an accurate angle please look at our bespoke or adjustable versions.
Set-Sized Bespoke Wrought Iron Style Handrail
This is a heavy solid steel handrail with flared ornamental scrolled ends with 2 newel posts, the handrail has a curved top to it for added style. Each handrail will be manufactured to your length and angle as selected and be provided in black etch primer.

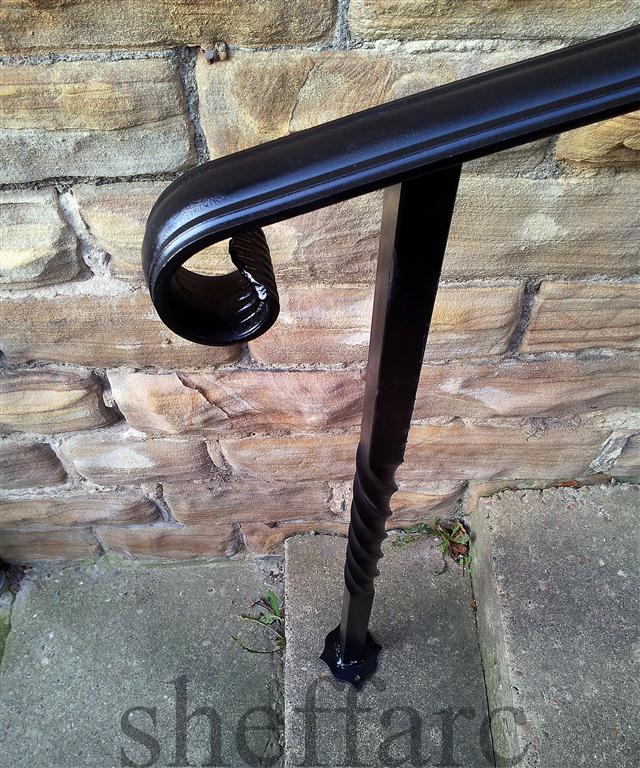

The handrail has 2 vertical newel posts made with 25mm square solid bar (option for twists in posts), the posts will be 900mm with a decorative foot plate to bolt onto a solid surface, (if you are fixing into soil or other soft surface please see out cement into the ground version).

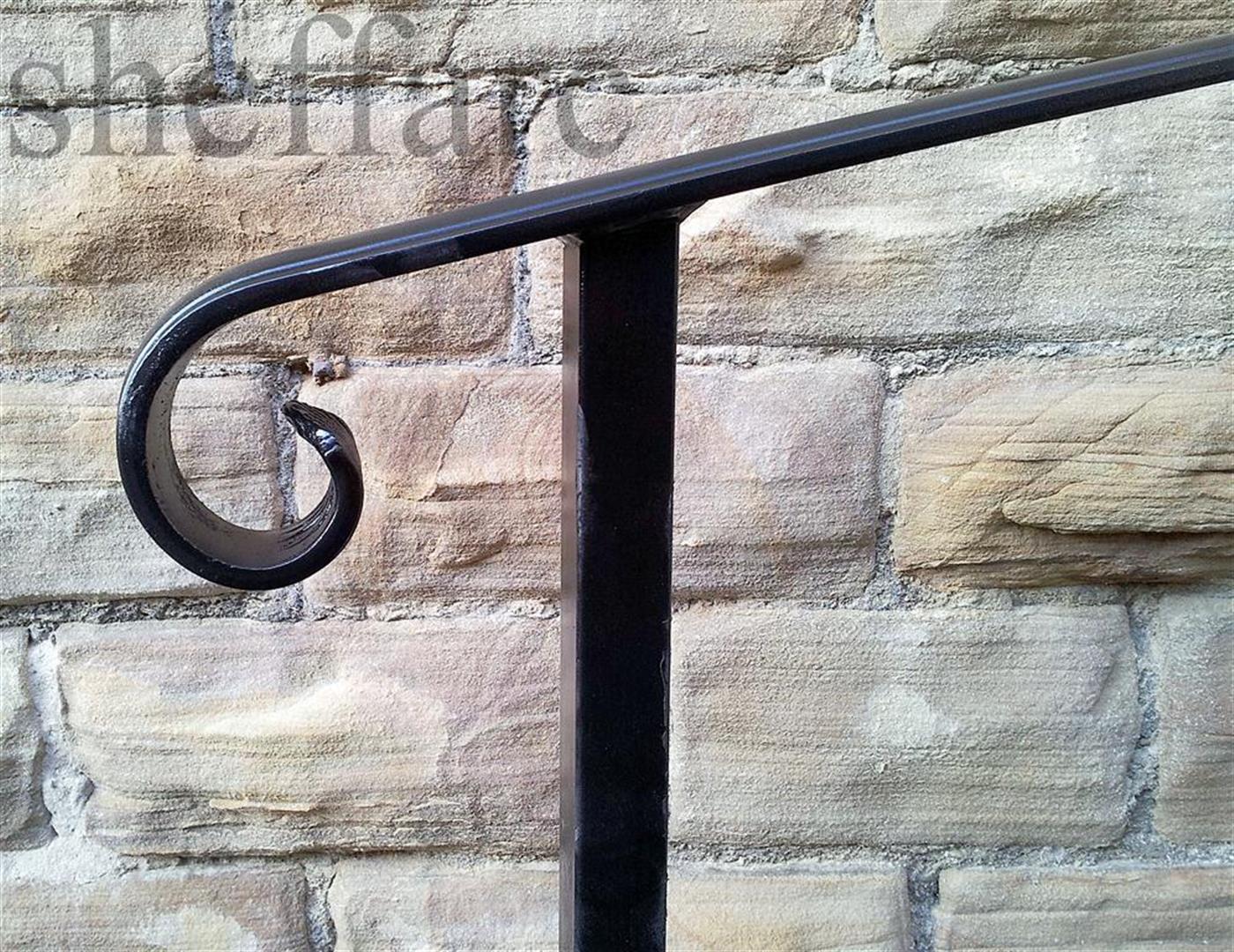

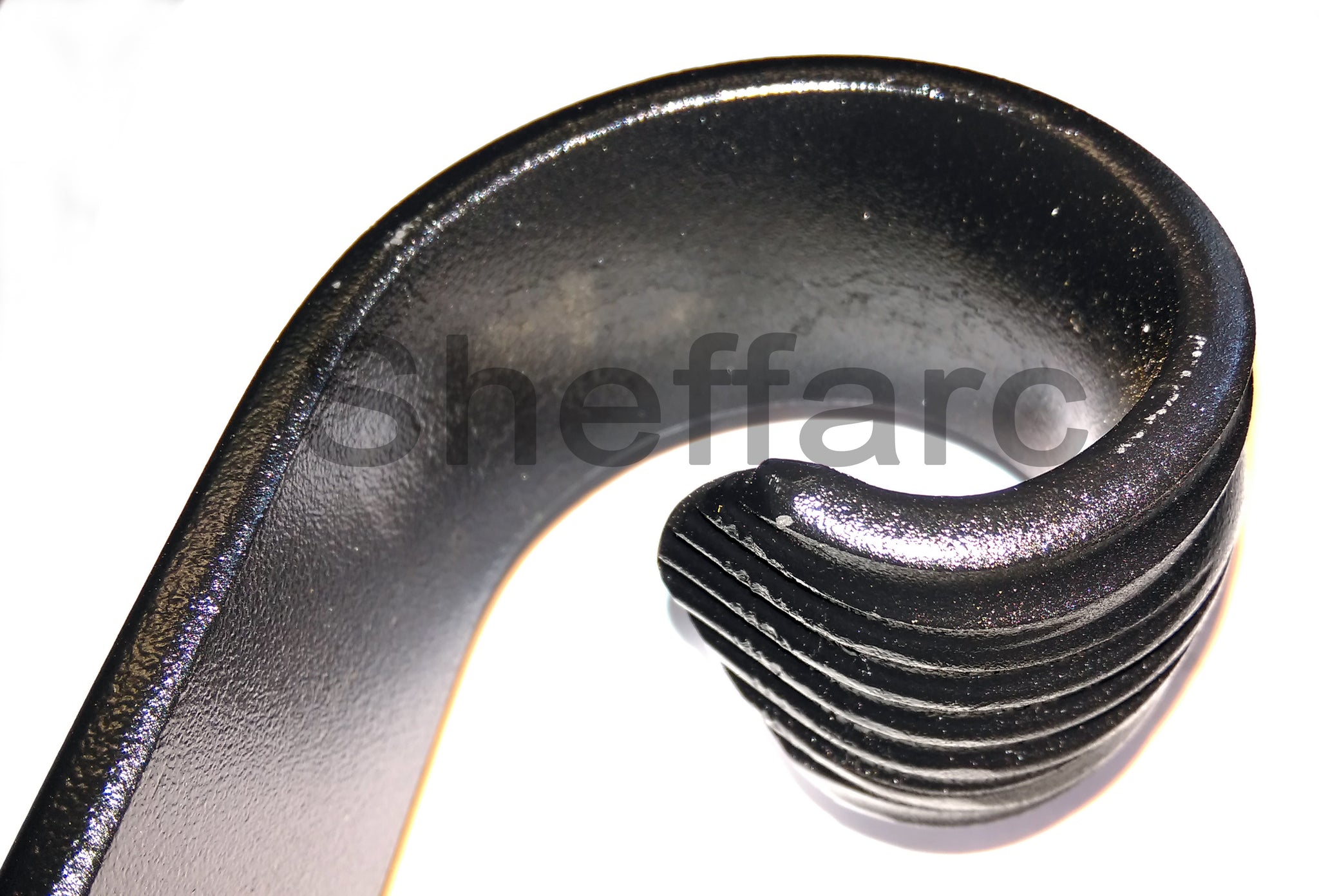

The handrail is 50mm x 14mm with a curve for comfort, they come complete with decorative scrolled ends.
This listing is for a handrail to a size and angle chosen at the top

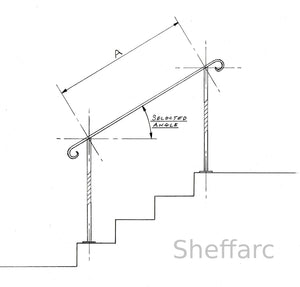

The handrail will be approx 400mm longer than the selected length ('A' in the sketch) between the post centres.
Footplate for bolt down version 125mm wide x 105mm front to back (hole centres 85mm apart
e.g. if you order a 1000mm (1m) between the posts handrail then the overall length of the handrail will be approx 1400mm
Width between post centres This is the diagonal distance between the points on the floor that you intend to fix the posts, this will provide the 'A' size in the sketch.
Angle This is the angle that the handrail will slope
Posts The posts will be 900mm tall with bolt down footplate welded to the base.
Rail Width of handrail 50mm
Help with sizing Simply hold a tape measure at the angle needed between the 2 positions that the post will be fixed to the ground and this will be the 'A' size (see sketch or ask for any help)
If you have any questions or a change to design then please get in touch for free advice and quote.
Call :- 0114 244 2233 or Email :- email@example.com
